netcode data flow
The Unity Transport Package (com.unity.transport, UTP) is the foundation for Unity Netcode for GameObjects and Netcode for Entities. ClutchCall ships a drop-in replacement — com.clutchcall.transport — that implements UTP’s INetworkInterface but carries traffic over the ClutchCall relay mesh instead of bare UDP. Reliable and unreliable channels map onto MoQT subgroup streams and QUIC datagrams, and peer discovery rides a namespace subscription on the relay. This is the Unity-shaped face of the Games modality. The games modality gives you state / input / event channels addressed by track namespace; the Unity transport gives you the same wire model behind UTP’s Connect / Send / Disconnect surface, so every Unity Netcode sample — server-authoritative, client prediction, ECS sync — works over ClutchCall by swapping one prefab.
If you are building a non-Unity game, or want explicit control over the channels, use the Games SDK directly. Reach for the Unity transport when you already have a Netcode project and want to keep its NetworkManager / DOTS code unchanged.

​
When to use it

Existing Unity Netcode project

You have a Netcode for GameObjects / Entities game and want global relay delivery without rewriting your networking layer.

UTP-shaped semantics

You want Connect, Send, GetCurrentRtt, MaxPayloadSize to behave like UTP — just over a QUIC pipe with reliable + unreliable channels.

Global edge fan-out

Players connect to the nearest relay POP; the mesh fans state and input between regions. No self-hosted relay servers to operate.

One token, one connection

The transport authenticates with the same ClutchCall token as every other modality and multiplexes over a single QUIC connection.

​
Wire model

The transport reproduces UTP’s two-channel model on top of the MoQT track primitive. Under the hood the host opens an authority namespace; each client publishes its own discovery namespace plus per-peer reliable and broadcast channels.
UTP channelCarried byDeliveryUse it for
ReliableMoQT subgroup streamordered, guaranteedspawns, RPCs, lobby, settlement
UnreliableQUIC datagramlossy, latest-winstick snapshots, inputs, transforms
Discoverynamespace subscribeeventpeer join / leave roster
The relay forwards a namespace announcement only to sessions that subscribed to a matching prefix, so namespace subscription is the natural join/leave channel — a client appears in the host’s roster the moment it announces, and disappears when its session drops.
UTP APIBacked by
INetworkInterfacethe shared C++ session layer over QUIC + MoQT
Reliable + unreliable channelsMoQT subgroup streams + QUIC datagrams
Peer discoverynamespace subscribe on the relay
GetCurrentRtt()the QUIC transport’s smoothed RTT
MaxPayloadSize()the negotiated max datagram size
capture-time telemetrya MoQT extension header used for glass-to-glass analytics
Because the unreliable channel is a real QUIC datagram, payloads larger than the path MTU are rejected rather than fragmented. Query MaxPayloadSize() for the live datagram budget and keep snapshot/input deltas under it; spill anything larger onto the reliable channel.

​
Lanes & QoS

The two UTP channels map to the same QUIC lanes the games modality uses:
  • Reliable lane — per-peer frame track over subgroup streams. In-order, retransmitted. This is the fallback for anything you cannot drop.
  • Broadcast lane — a game-state-style fan-out frame track from the authority to all peers, also over subgroup streams when reliability is requested.
  • Unreliable lane — frames flagged as datagram ride a single QUIC DATAGRAM each: no head-of-line blocking, no retransmit, latest wins. This is the lane your tick-rate state and input snapshots should use.
Pick the lane the way you would in UTP: send your high-frequency, latest-wins traffic unreliable, and reserve reliable for low-rate, must-arrive messages.

​
The shared session under the wrapper

Beneath the Unity component sits a language-agnostic star-session layer in C++. The host opens an authority namespace; each client publishes a discovery namespace plus per-peer reliable and broadcast channels. The session multiplexes the reliable, broadcast, unreliable, and peer-roster lanes described above, and is exposed to other languages through a small native FFI surface. The Unity package is a managed wrapper around that session: a QUIC-datagram pipe plus synthetic UTP endpoints. Every UTP call forwards into the substrate. Because that session layer is shared, the same host-plus-N-peers shape (reliable
  • unreliable + discovery) backs any engine integration, not just Unity. If you are wiring up a non-Unity engine, the integration reduces to a handful of engine-side hooks — discovery, RTT, max-datagram, capture-time telemetry, and the datagram-lane mapping — and the rest of the session machinery is reused.

​

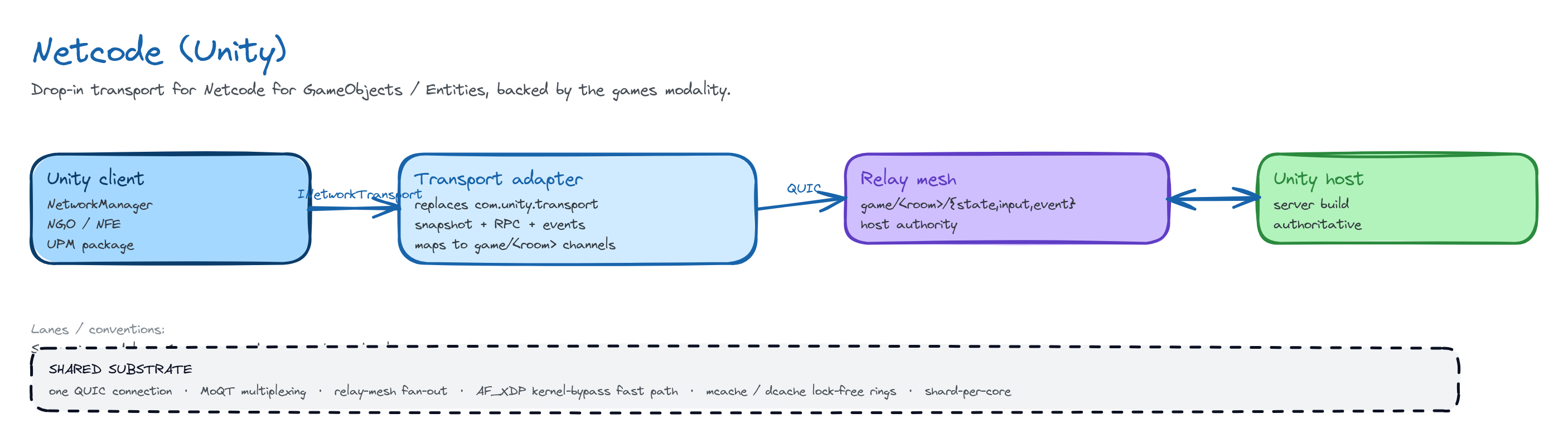

Architecture

Every player holds one QUIC connection to its nearest relay POP and speaks MoQT (Media over QUIC Transport) over it. The relay mesh fans state and input between regions, so two players on different continents share one logical room without either running a server. Reliable channels are MoQT subgroup streams; unreliable channels are QUIC datagrams — both ride the same connection.
The relay is a shard-per-core (thread-per-core) reactor: each core owns a slice of connections with no cross-core locking on the hot path, using lock-free SPSC / SPMC ring buffers to hand work between stages. This is what lets a single relay node fan tens of thousands of datagrams per match without GC pauses or lock contention.
On the relay’s data plane, packets move through an AF_XDP kernel-bypass path: an eBPF/XSK program steers room traffic into a per-core UMEM, and the engine reads/writes frames zero-copy without a syscall per packet. The result is predictable sub-millisecond relay processing latency under load.
The token configured in the transport inspector authorizes the QUIC session. The same token shape works across every ClutchCall modality, so a title that also uses voice chat or live streaming reuses one credential and one connection.

​
ECS racing sample

The Unity-provided ECS-Network-Racing-Sample runs end-to-end over ClutchCall with the transport swap. With the host and client roles assigned, the [Server] / [Client] “Go in game” connection lifecycle completes, NetworkId is assigned, and tens of thousands of datagrams flow through the relay per match — all through the unreliable lane, with reliable spawns and RPCs on subgroup streams.

​
Limitations

The Unity package targets Mono and IL2CPP players. Editor batch-mode World.Update() does not drive Netcode — you need a built player for true end-to-end testing. DOTS environments use a static id registry internally (transparent to UTP) because raw GC-handle round-tripping is unavailable there. On Linux, headless players may need the usual Unity native-library shims on the runtime library path; the package README documents the exact recipe.
